SR03

127.58 USD incl. VAT

ks

A built-in module with a CCD sensor with up to 200 scans per second More >>

Add to favourite products Send message to your friend Print

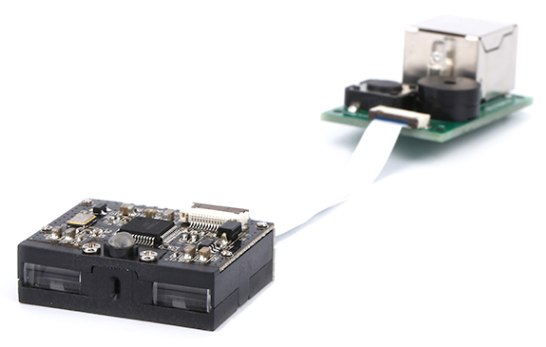

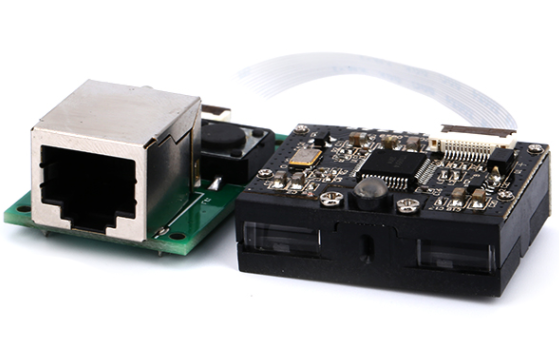

The Sensodroid SR03 is distinguished by its mini-dimensions and installation possibilities for technological equipment and prototypes. A PCB motherboard is added to the module, where you can find the power connector, trigger, and speaker. The scanning speed is up to 280 scans per second.

Code reader properties:

Scanning speed up to 200 scans / sec
Programming prefix and suffix

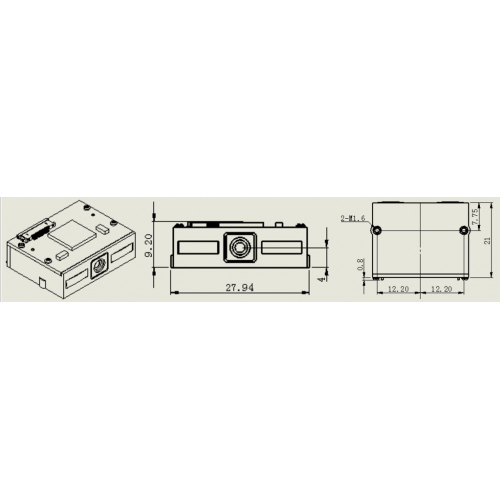

Very small module dimensions 27.94 * 21 * 9.2mm
Possibility of integration into technological equipment
Bar code notification notice acoustically
Optical Source620nm
Visible red light diode
Imaging Sensor linear imaging sensor (CCD)
Resolution Ratio2500pixelImage
Resolution ≥5mil (when PCS is 0.9, barcode is Code 39)
Minimum Contrast ≥ 30%
Barcode TypesCode128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ISBN, Code 93, UCC / EAN-128, GS1 Databar and so on
Decoding Speed ​​280times / sec
Barcode SensitivityTilt ± 55 ° Rotate ± 25 ° Deflection ± 75 °
Data Interface FPC Flat Cable (below connection)
Separation distance: 6 * 0.5mm
(Length x Width x Height) 27.94 * 21 * 9.2mm
Weight (except cable) 5g
Indicatorbuzzer and LED light.
Power 330 mW
Working VoltageDC 3.3V ± 10% Current
Max.Current 100mA
Working Current 83 mA
Stand-by Current 24 mA
Listoutput signal (date line) TTL232 date line
Environmental Temperature Storage Temperature -40 ° C ~ 60 ° CWorking Temperature0 ° C ~ 50 ° CRelative Humidity0 ~ 95% (without condension)
Certificates CE, RoHS, EMC, LVD, ISO9001: 2008, ISO14001: 2004

Sensor
CCD
Interface
Cable
