M300

127.56 USD incl. VAT

ks

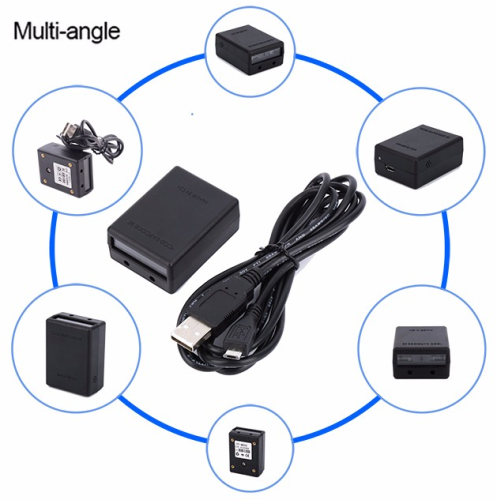

The Mini Cable Barcode Reader M300 stands out for its small size and ease of use. Automatic reading of the code after approaching the reader. Use in logistics, production lines, kiosks, automation. More >>

Add to favourite products Send message to your friend Print

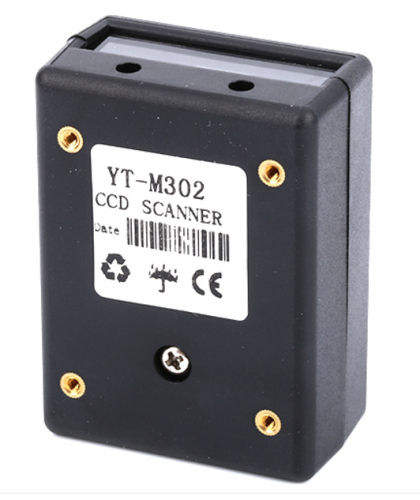

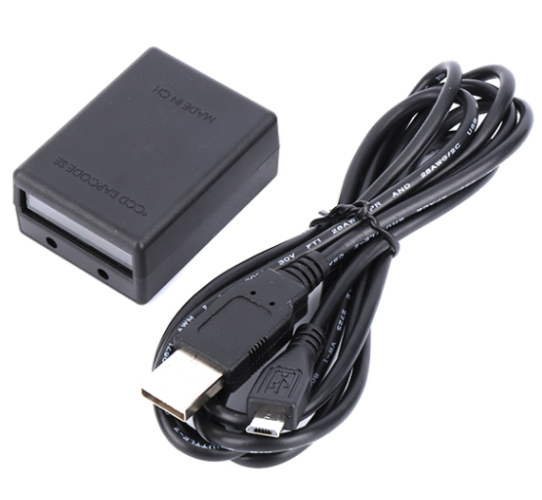

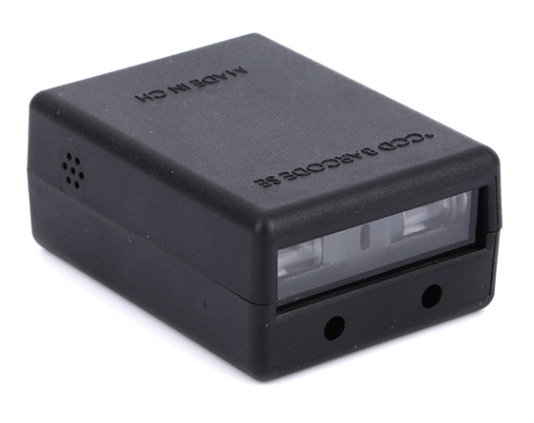

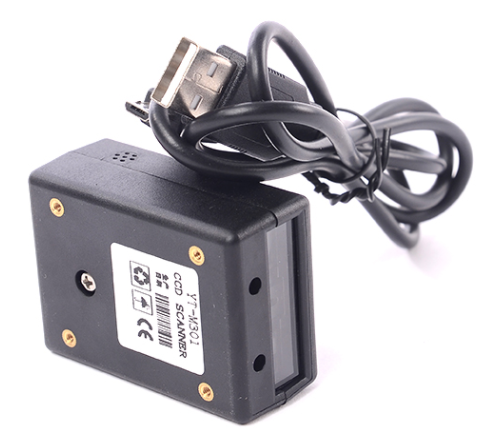

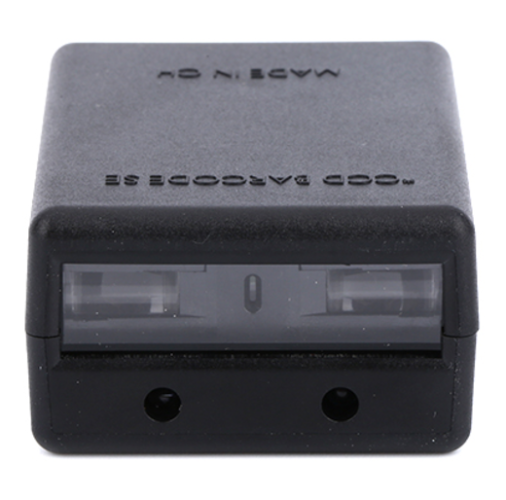

The Sensodroid M300 CCD Reader excels with its mini-dimensions and built-in technology and prototype capabilities thanks to automatic read-out. Mounting option with 4 mounting holes with built-in thread. Of course, the reader can be used separately as a classic barcode reader. It does not contain a trigger, and code reading is turned on by zooming in to the scanned barcode. The power is solved via USB. You can find the micro USB charging cable in the package, so you can connect the reader directly to your phone or tablet that supports the OTG USB micro USB connector. The scanning speed is up to 280 scans per second.

Code reader properties:

Scanning speed up to 280 scans / sec
Programming prefix and suffix
Possibility to use with devices with Micro USB connector phones, tablets
Very small dimensions 50 x 37 x 21 mm
Possibility of integration into technological equipment
Automatic Barcode Induction Scanning
Acoustic notification of code removal
Technical details:
Infrared induction distance 150 - 200 mm
Optical source 620 nm visible red light diode
CCD sensor
Resolution Ratio 2500 pixels
Image resolution ≥ 5mil
Minimal contrast ≥ 30%
Bar code types Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar,
 Interleaved 2 of 5, ISBN, Code 93, UCC / EAN-128, GS1 Databar, etc.
Decoding speed 280times / sec
Bar code Sensitivity Tilt ± 55 °
Rotation ± 25 °
Deviation ± 75 °
Data interface port micro usb
Mechanical and electrical parameters
Dimensions (length x width x height) 50 x 37.3 x 21.7 mm
Weight 27 g
Siren and LED light
Maximum power 700mw
Operating voltage DC5V
Current Max.Curren 140mA
Working current 90mA
Stand-by current 45mA
Accessories list
Data cable Micro USB data cable

Instruction Manual 1 piece
Environment
Storage temperature -40 ° C ~ 60 ° C
Working temperature 0 ° C to 50 ° C
Relative humidity 0 ~ 95%
IP class IP52
Certificates
CE, RoHS, EMC, LVD, ISO9001: 2008, ISO 14001: 2004

Sensor
CCD
Interface
Cable
